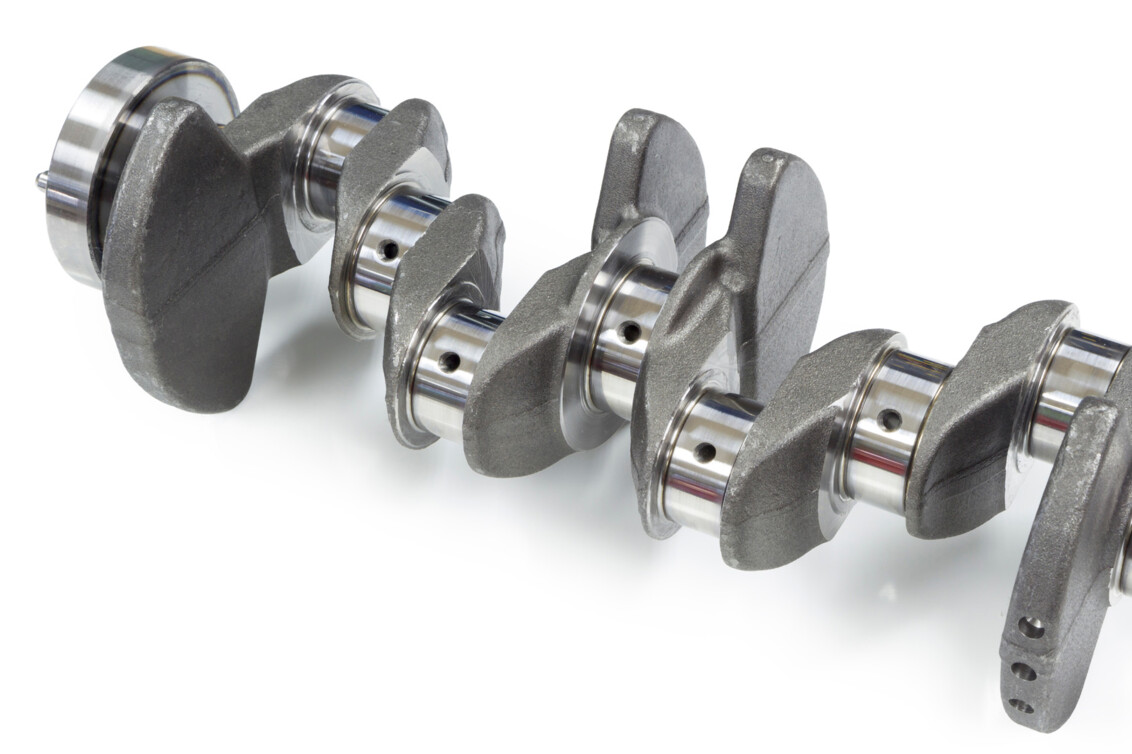

Crankshaft
Description
The manufacturer of this crankshaft is a subcontractor to the Chinese automotive industry. The deburring of these oil bores has been executed manually up to now. Due to regular complaints from his customer, the subcontractor set out to look for more stable process. The issue was that there was no automated solution available on the market that allowed to deburr cross bores with a ratio of 1:1.
Application details
Application details
- Bore diameter: Ø 8.0 mm intersecting with main bore Ø 8.5 mm
- Material: 42CrMoA
- Machining: horizontal
- Volume: 1 Mio. bores per year
Proposed solution
Proposed solution

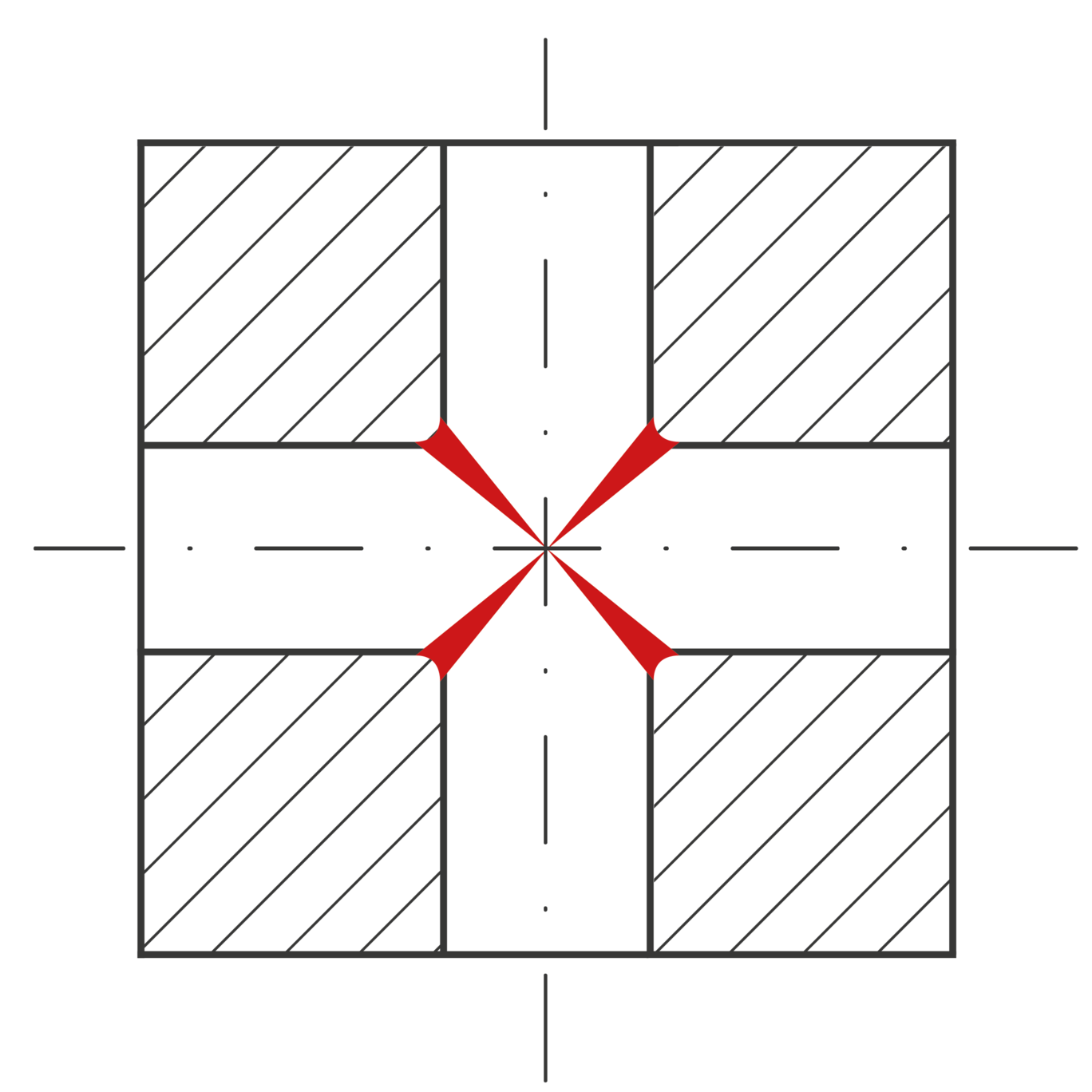

This application is predestined for HEULE's new X-BORES technology. The COFA-X tool has been designed for the deburring of cross bores with a bore diameter ratio of 1:1. The intersection of the bores will be deburred via the cross bore:
COFA C6X 8.0 S with blade C6X-M-0001-T
Machining parameters:
- Cutting data:
Speed: 500 rev/min.
Feed: 0.1 mm/rev - Maschin: Shenyang CNC
- Processing: horizontally
Customer benefit
Customer benefit
The customer was able to replace the manual work by an automated process. The deburring result is now stable and shows an improved quality too.
Customer satisfaction
Customer satisfaction
The customer appreciates the simple and safe handling of the tool that functions without preadjustments.
